Hardware Connection Diagram

Non-bus Control System (Solution 1)

Main hardware configuration: PM95A + Lambda 5E + EX33A + EX31A

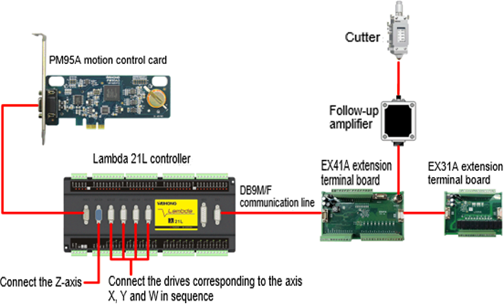

Non-bus Control System (Solution 2)

Main hardware configuration: PM95A + Lambda 21L + EX41A + EX31A

Bus Control System (Solution 1)

Main hardware configuration: PM95A + Lambda NE + EX33A + EX31A

Lambda NE controller is bus type Lambda controller that supports the following two configuration methods in software configuration.

• Z-axis is bus configuration: that is, the X, Y, and Z-axis are all bus configurations.
• Z-axis is non-bus configuration: that is, both the X-axis and Y-axis are bus configurations, while the Z-axis is non-bus configuration.

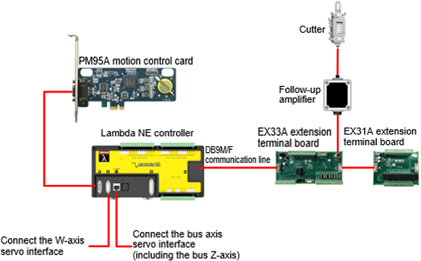

The hardware connection diagram of Lambda NE controller with Z-axis as bus configuration is shown below:

The hardware connection diagram of Lambda NE controller with Z-axis as non-bus configuration is shown below:

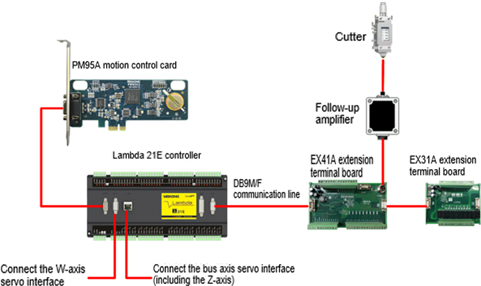

Bus Control System (Solution 2)

Main hardware configuration: PM95A + Lambda 21E + EX41A + EX31A

Note: The Lambda 21E controller is bus type Lambda controller. In the software configuration, it only supports the Z-axis as bus configuration (X, Y, and Z axis are all bus configurations), and does not support the Z-axis as non-bus configuration (X and Y axis are all bus configurations, and the Z-axis is non-bus configuration). The Lambda NE controller supports both configurations.
