Hardware

NC65C

NC65C industrial personal computer, also called NC65C Controller (hereinafter referred to as NC65C). It can be applied to various industries when mated with Lambda terminal board.

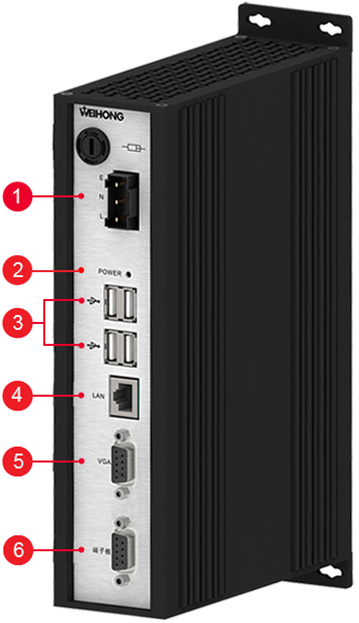

The interface layout of NC65C is as follows:

1. LNE (interface of live wire, neutral wire and earth wire): used to connect to 220V power supply.
2. Indicator light: the power light.
3. USB: used to transmit data with a USB flash disk.
4. LAN: the transmission rate is 100Mbps.
5. VGA display screen: used to connect to the display screen.
6. Lambda terminal board: used to connect to the Lambda terminal board.

Lambda 21B

It is used for the bus control system.

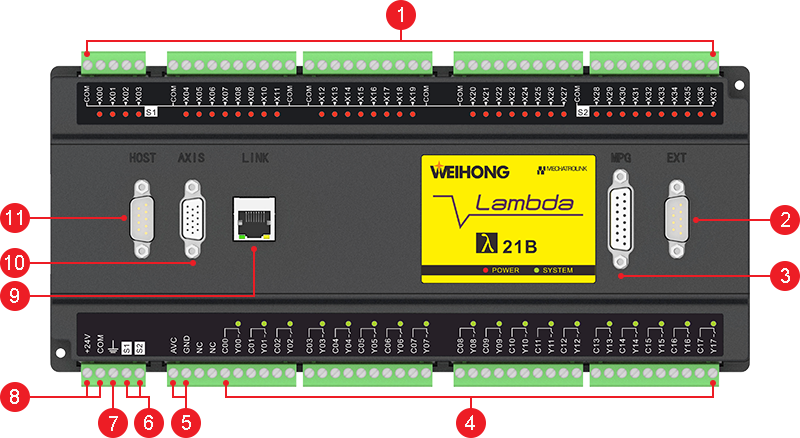

The interface layout of Lambda 21B is as follows:

1. General input port: including X00 ~ X37.

2. Extended interface: named EXT. It is the DB9 interface.

3. Handwheel interface: named MPG.

4. General output port: including C00/Y00 ~ C17/Y17.

5. Interfaces for analog voltage outputs: AVC: the interface for analog voltage output; GND: the reference ground for analog voltage.

6. Interfaces for configuring active level: NPN / PNP configurable (S->24V / S->COM)

   S end includes:

   • S1: configure active level for X00 ~ X27.
   • S2: configure active level for X28 ~ X37.

7. Grounding port: use to be grounded to the earth.

8. Power port:

   • +24V: 24V DC positive input
   • COM: 24V DC ground

9. M-II communication port: named LINK. It is the RJ45 interface and supports 16 axes at most.

10. Pulse communication port: named AXIS. It is the DB15 interface and supports the incremental encoder.

11. Host communication port: named HOST. It is the DB9 interface and follows Phoenix bus protocol.
